AP54RHC5942
Radiation-Hardened 8-Bit Serial-In Parallel-Out Shift Register
AP54RHC5942

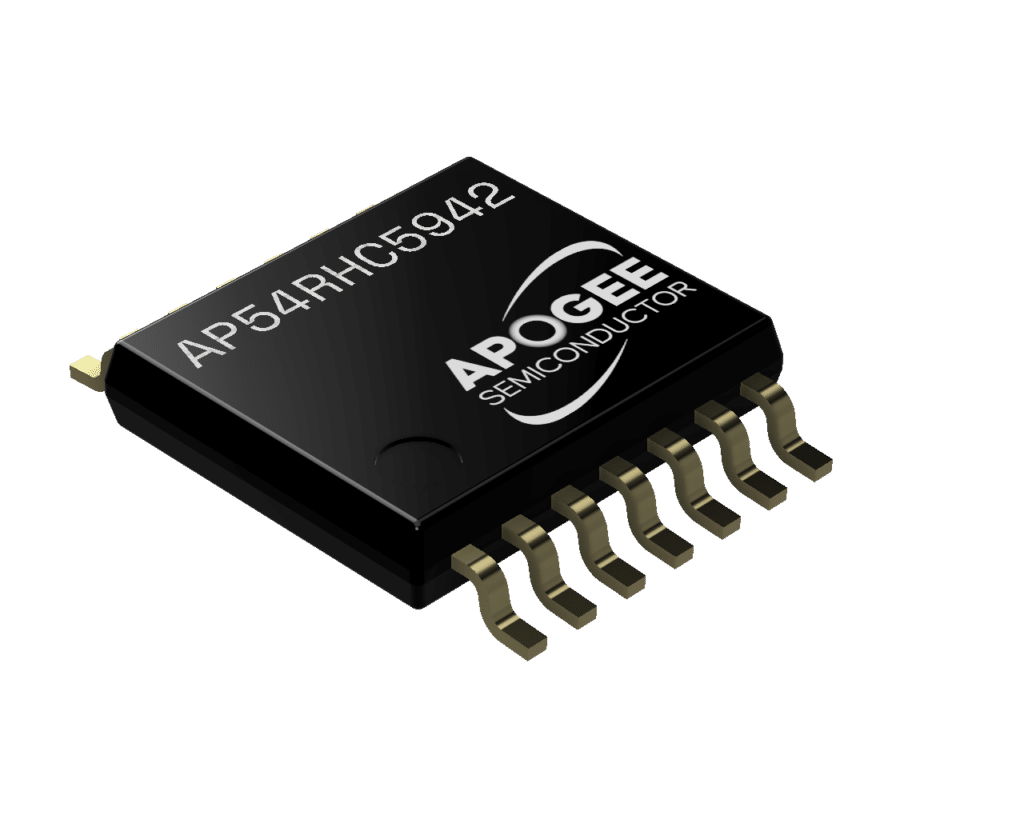

The AP54RHC5942 is a radiation-hardened by design 8-bit shift register, serial-in parallel-out (SIPO), with output latch that is ideally suited for commercial space and other applications demanding radiation tolerance and high reliability. It has myriad applications including IO expansion, data-buffering, serial-to-parallel conversion, and more.
This device is a member of the Apogee Semiconductor AP54RHC logic family operating across a voltage supply range of 1.4 V to 5.5 V. Its wide voltage range support and logic level down translation enable flexible system integration.
- SEL/SEFI immune to LET of 75 MeV-cm²/mg
- 1.4 V to 5.5 V operation
- Cold sparing Inputs and Outputs
- Single-supply Level Translation
- Power-on reset (POR) ensures reliable power up and power down in hot plug and cold sparing operations
- TID RLAT 30 krad (Si) at 5.5 V
- Operating temperature range -55 °C to +125 °C
- Meets NASA’s ASTM E595 outgassing specification
- Moisture Sensitivity Level 1 (Unlimited)
- Serial to parallel logic conversion
- IO expansion
- FDIR: Fault Detection, Isolation, and Recovery
- Data buffering
- Discrete state machines
Technical Documentation
Top documentation for this product
|
|
|
Format |
Date
|
|
| Datasheet | AP54RHC5942 Pre-Production Datasheet B00 | 09/01/2026 | ||
| Product Flyer | AP54RHC5942 Product Overview | 09/01/2026 | ||
| Report | Total Ionizing Dose (TID) Radiation Report (GF Foundry, LEO AP54RHC, Single Supply) | 05/19/2026 | ||
| Report | Material Content Report — ATEC 14-Pin TSSOP | 06/03/2026 | ||
| Application Note | Product Grades and Quality Flows | 06/04/2026 | ||
| White Paper | Limit the Impact of COTS Failures in Commercial Space with Apogee’s RelBridge | 05/22/2026 | ||
| White Paper | The Logic of Cold Sparing — Enabling Resilient Systems with Advanced Components | 05/22/2026 | ||
| Product Brochure | Apogee Semiconductor Product Catalog 2026-H1 |
| AP54RHC5942 Pre-Production Datasheet B00 | Datasheet | 09/01/2026 | |
| AP54RHC5942 Product Overview | Product Flyer | 09/01/2026 | |
| Total Ionizing Dose (TID) Radiation Report (GF Foundry, LEO AP54RHC, Single Supply) | Report | 05/19/2026 | |
| Material Content Report — ATEC 14-Pin TSSOP | Report | 06/03/2026 | |
| Product Grades and Quality Flows | Application Note | 06/04/2026 | |
| Limit the Impact of COTS Failures in Commercial Space with Apogee’s RelBridge | White Paper | 05/22/2026 | |
| The Logic of Cold Sparing — Enabling Resilient Systems with Advanced Components | White Paper | 05/22/2026 | |
| Apogee Semiconductor Product Catalog 2026-H1 | Product Brochure |
Design and Development
Top documentation for this product
|
|
|
Format |
Date
|
|
| CAD Footprints, Symbols, & 3D Models | AP54RHC5942 Schematic Symbol, Footprint, and 3D Model | CAD Model |
| AP54RHC5942 Schematic Symbol, Footprint, and 3D Model | CAD Footprints, Symbols, & 3D Models | CAD Model |
ordering
| Part Number | Pedigree | Package | Pins | Lead Finish | MSL Rating | Burn-In |
|---|---|---|---|---|---|---|
| AP54RHC5942ANT-R | Flight Grade A | TSSOP-14 | 14 | NiPdAu | 1 | Yes |
| AP54RHC5942BNT-R | Flight Grade B | TSSOP-14 | 14 | NiPdAu | 1 | No |
| AP54RHC5942CNT-R | Flight Grade C | TSSOP-14 | 14 | NiPdAu | 1 | No |
| AP54RHC5942ENT-R | Evaluation | TSSOP-14 | 14 | NiPdAu | 1 | No |
