AP54RHC164 (Copy)
Radiation Hardened’ 8-bit Shift Register SIPO
AP54RHC164 (Copy)
Description
Features & Benefits
Application

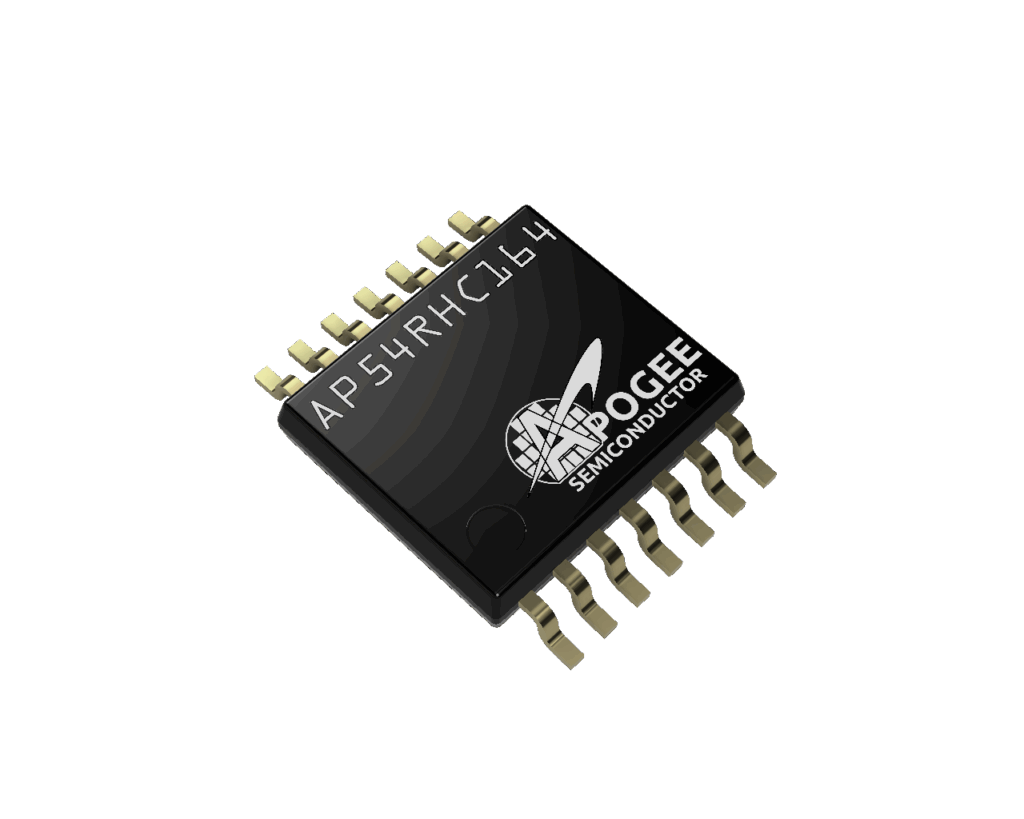

The AP54RHC164 is a radiation-hardened'-by-design 8-bit Serial-In Parallel-Out Shift Register (SIPO) for space, medical imaging, and high-energy physics applications, built on a 180 nm CMOS process with proprietary hardening for resilience to single-event effects and total ionizing dose up to 30 krad(Si). As a member of Apogee Semiconductor’s AP54RHC logic family, it operates from 1.65 V to 5.5 V supply and uses a fully triple-redundant architecture to provide immunity to single-event transients without external redundancy.
- 1.65 VDC to 5 VDC operation
- Inputs tolerant up to 5.5 VDC at any VCC
- Provides logic-level down translation to VCC
- Extended operating temperature range (-55°C to +125°C)
- Proprietary cold-sparing capability with zero static power penalty
- Built-in triple redundancy for enhanced reliability.
- SEL resilient up to LET 80 MeV-cm2/mg
- LEO Constellations
- Small satellites
- Medical Imaging
- Data Storage
- Signal Processing
- Digital Communications
- DAC Latch
Technical Documentation
Top documentation for this product
|
|
|
Format |
Date
|
|
| Datasheet | AP54RHC164 Radiation-hardened' 8-bit Sipo Shift Register With Cold Sparing | |||
| Datasheet | Product Grades and Quality Flows | |||
| Datasheet | The Logic of Cold Sparing | |||
| Datasheet | RelBridgeâ„¢ Fault Containment | |||
| Datasheet | Single Event Transient (SET) | |||
| Datasheet | LEO Dual-Supply Total Ionizing Dose (TID) | |||
| Datasheet | LEO Single-Supply Total Ionizing Dose (TID) |
| AP54RHC164 Radiation-hardened' 8-bit Sipo Shift Register With Cold Sparing | Datasheet | ||
| Product Grades and Quality Flows | Datasheet | ||
| The Logic of Cold Sparing | Datasheet | ||
| RelBridgeâ„¢ Fault Containment | Datasheet | ||
| Single Event Transient (SET) | Datasheet | ||
| LEO Dual-Supply Total Ionizing Dose (TID) | Datasheet | ||
| LEO Single-Supply Total Ionizing Dose (TID) | Datasheet |
Design and Development
Top documentation for this product
|
|
|
Format |
Date
|
|
| Hardware | AP54RHC164 User's Guide | |||
| CAD Footprints, Symbols, & 3D Models | AP54RHC164 Schematic Symbol | CAD Model |
| AP54RHC164 User's Guide | Hardware | ||
| AP54RHC164 Schematic Symbol | CAD Footprints, Symbols, & 3D Models | CAD Model |
ordering
| Part Number | Pedigree | Package | Pins | Lead Finish | MSL Rating | Burn-In | Request Quote |
|---|---|---|---|---|---|---|---|
| AP54RHC164ELT-R | Evaluation | TSSOP | 14 | SnPb | 1 | No |
Contact Us |
| AP54RHC164CLT-R | Flight Grade 'C' | TSSOP | 14 | SnPb | 1 | No |
Contact Us |
| AP54RHC164BLT-R | Flight Grade 'B' | TSSOP | 14 | SnPb | 1 | No |
Contact Us |
| AP54RHC164ALT-R | Flight Grade 'A' | TSSOP | 14 | SnPb | 1 | Yes |
Contact Us |
| AP54RHC164ENT-R | Evaluation | TSSOP | 14 | NiPdAu | 1 | No |
Contact Us |
| AP54RHC164CNT-R | Flight Grade 'C' | TSSOP | 14 | NiPdAu | 1 | No |
Contact Us |
| AP54RHC164BNT-R | Flight Grade 'B' | TSSOP | 14 | NiPdAu | 1 | No |
Contact Us |
| AP54RHC164ANT-R | Flight Grade 'A' | TSSOP | 14 | NiPdAu | 1 | Yes |
Contact Us |
